HVAC quantity takeoffs
HVAC Estimating Services
Separate air-side ductwork, mechanical piping, equipment and accessories in a reviewable HVAC takeoff. Reconcile drawings with equipment schedules, then define controls, insulation and commissioning responsibilities.
- Itemized quantity schedules
- Defined trade boundaries
- Drawing-based scope
- Project-specific quote
HVAC Takeoff Scope and Quantity Breakdown
Choose a quantity takeoff to organize the drawing measurements, or request a priced estimate with a documented material, labor and equipment basis. The project quote records included assemblies, measurement conventions, drawing revisions and delivery requirements.
| Quantity category | Typical unit | Review input |
|---|---|---|
| Straight ductwork | LF / SF | Separate dimensions, shape, material and specified construction. |
| Duct fittings and accessories | EA | Identify transitions, elbows, dampers and access requirements. |
| Air devices and equipment | EA | Reconcile tags with schedules, capacities and supplied accessories. |
| Mechanical piping | LF / EA | Separate systems, materials, sizes, valves and fittings. |
| Insulation and lining | SF / LF | Distinguish external wrap, internal lining and pipe insulation. |
| Controls, supports and testing | EA / scope item | Document the agreed supply, installation and testing boundaries. |
These categories help define the requested package. Identify base work, alternates and excluded systems before work starts, and retain drawing references beside quantities so changes can be traced.
Air-Side and Piping Quantity Schedules

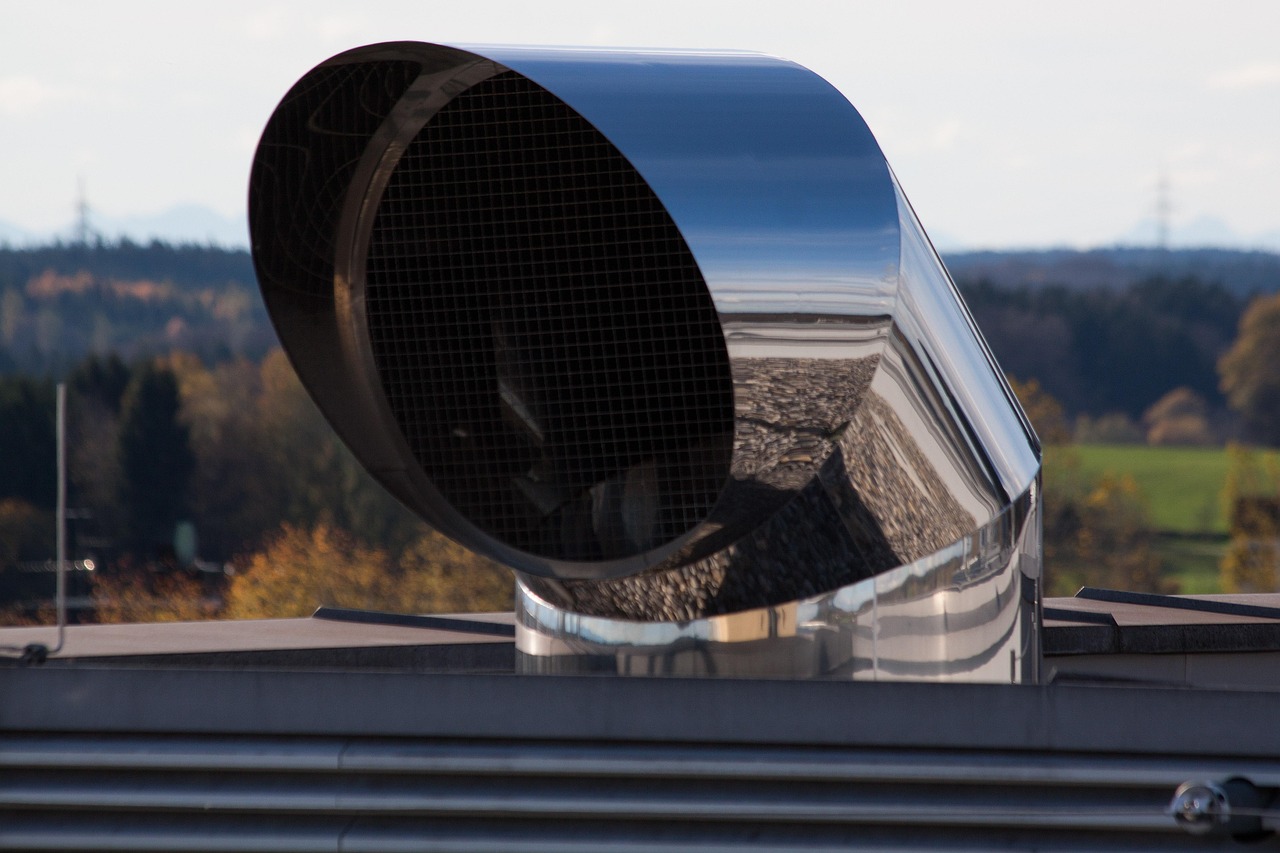

Duct dimensions and systems
Separate supply, return, exhaust and other specified air systems before combining duct quantities. Record shape, dimensions, material and construction requirements from the drawings and specification. Straight duct length is not a complete fabrication quantity: fittings, transitions, dampers and access panels should remain visible. Sheet-metal area and weight also require different inputs, so the schedule should identify which measurement basis is being used.
Reconcile equipment and device tags
Match equipment tags and air-distribution devices across plans, schedules and details. Review rooftop units, air handlers, fans and other scheduled equipment together with curbs, supports and listed accessories. Keep alternatives and owner-furnished equipment separate from the base package. Where a tag appears without a complete schedule or connection detail, flag the missing information instead of assuming the equipment selection or installation scope.
Mechanical pipe and insulation scope
For hydronic, refrigerant or other specified piping, distinguish material, diameter, system and connection points. Record fittings, valves, insulation, supports and equipment connections under the agreed scope. Pipe length alone does not determine the entire installed assembly. Insulation and duct lining should follow the issued product and assembly requirements; their area or length cannot be inferred from a single equipment count.
HVAC Pricing, Controls and Coordination
Document fabrication and installation inputs
A priced HVAC estimate needs the stated material quotation and the intended installation conditions. Keep duct fabrication or purchased assemblies, equipment supply, installation labor, lifting and access responsibilities identifiable. Weight calculations need specified material and construction inputs, while geometric surface area is only a dimensional result. Do not substitute the rectangular duct calculator for fittings, seams, hangers, shop drawings or a complete system takeoff.
Agree controls and commissioning boundaries
Building controls, equipment controls, testing, balancing and commissioning can involve different subcontract responsibilities. Identify what the bid documents assign and whether vendor quotations include those items. A packaged equipment quotation may contain a control component that appears elsewhere in the schedule. Reconcile these interfaces before pricing, and keep unresolved connection or commissioning work as a qualification rather than counting it twice.
Check adjacent trades and revisions
Review electrical power and control wiring boundaries, plumbing connections, roof penetrations, structural supports and ceiling access. A revised equipment schedule can affect more than the equipment price: connections, supports, duct sizes and access may change. Record the issued drawing revision and affected systems when comparing an addendum. A takeoff measures the design supplied by the project; equipment sizing or engineering changes require the responsible design professionals.
Cost Inputs for a HVAC Estimate
Duct construction, fittings, mechanical pipe material, equipment selections, lifting access and controls boundaries affect pricing. Review supplier inclusions and installation assumptions before combining a system total.
Keep the cost basis visible
A priced schedule should distinguish material supply, installation labor, equipment and explicitly selected allowances. Record quotation dates, wage requirements, productivity inputs and the treatment of taxes, freight, overhead and profit. A quantity-only schedule leaves those price fields for the contractor to complete.
Fee and delivery date
The estimating fee and delivery date depend on drawing completeness, package complexity, requested outputs, pricing work and revision scope. Share the bid deadline with your enquiry; the accepted quote establishes the schedule and any requested rush terms. Review estimating fee factors and quote inclusions.
HVAC Quantity Schedule: Blank Format Preview
This is a blank schedule layout, not a completed customer estimate. Replace row descriptions with the issued project items, enter measured quantities and retain the supporting drawing reference. No prices or verified project quantities are supplied.
| Drawing reference | Item description | Quantity | Unit | Scope note |
|---|---|---|---|---|
| Enter issued drawing reference | Straight ductwork | To measure | LF / SF | Separate dimensions, shape, material and specified construction. |
| Enter issued drawing reference | Duct fittings and accessories | To measure | EA | Identify transitions, elbows, dampers and access requirements. |
| Enter issued drawing reference | Air devices and equipment | To measure | EA | Reconcile tags with schedules, capacities and supplied accessories. |
Download the blank hvac quantity schedule (CSV). Open it in spreadsheet software and add project-specific quantities, selected allowances, supplier sources and qualifications.
Review before a bid
Confirm measurement units and net-versus-purchasing quantities. Compare supplier inclusions with the item list, identify missing drawings, reconcile base work and alternates, and record how addenda or later revisions will be handled. Keep an unresolved item visible rather than hiding it inside a general allowance.
Request Your HVAC Estimate
Send current drawings, specifications, schedules and addenda, together with the project location, requested trade and bid deadline. State whether you need quantities only or pricing, and identify incomplete information or alternates.
- Define the package: identify included assemblies and drawing revisions.
- Agree the quote: confirm the fee, file formats, pricing basis and delivery date.
- Review the output: retain item descriptions, units, drawing references, assumptions and exclusions.
- Manage revisions: agree how later drawing changes and addenda will be compared or quoted.
Send hvac project details or contact BuildMetric about your package.
HVAC Estimating FAQs
Scope, quantity conventions, pricing and drawing changes
What documents help define an HVAC takeoff?
Mechanical plans, duct and piping details, equipment schedules and specifications. Identify the revision, addenda and missing details before agreeing the scope.
What quantities are relevant to HVAC estimating?
Duct dimensions and lengths; pipe lengths (LF); equipment and fittings (EA); insulation area (SF). The quote should specify which categories and measurement conventions are included.
Does a quantity takeoff include a priced estimate?
A takeoff measures quantities. Pricing requires agreed material, labor and equipment rates, plus any specified allowances. Confirm pricing and revision requirements in the quote.
Can duct surface area be treated as duct weight?
No. Weight requires specified material and construction inputs in addition to dimensions. The rectangular duct tool calculates straight lateral surface area only; it does not quantify fittings or establish fabrication weight.
Are controls and testing included in every HVAC estimate?
They must be identified in the agreed scope. Record which controls, testing, balancing and commissioning responsibilities belong to the HVAC package and which are included in a vendor or other trade quotation.
What changes the HVAC estimating fee?
Duct construction, fittings, mechanical pipe material, equipment selections, lifting access and controls boundaries affect pricing. Review supplier inclusions and installation assumptions before combining a system total. Drawing completeness, requested pricing, file formats and revision work also determine the project quote.
Can I request quantities without material and labor prices?
Yes—identify a quantity-only request in the enquiry. A priced estimate is a separate agreed scope using documented material, labor and equipment inputs. Keep net quantities and the pricing basis distinguishable.
How are the delivery date and later addenda agreed?
Provide the bid deadline and issued drawing set with your request. Confirm the delivery date and revision inclusions in the quote; later addenda should identify affected items and any separately quoted work.
